China-Made OEM/ODM Support Heavy Duty Industrial Induced Draft Fan

Name: China-Made OEM/ODM Support Heavy Duty Industrial Induced Draft Fan
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: 7-26
Price: 750.00 USD
Availability: InStock

تفاصيل المنتج:

مكان المنشأ:	الصين
اسم العلامة التجارية:	SIMO BLOWER
إصدار الشهادات:	CE、ISO9001
رقم الموديل:	7-26

معلومات مفصلة

مكان المنشأ:

الصين

اسم العلامة التجارية:

SIMO BLOWER

إصدار الشهادات:

CE、ISO9001

رقم الموديل:

7-26

مادة:

الألومنيوم والصلب والبلاستيك

دعم مخصص:

ODM OEM OBM

الجهد االكهربى:

380 فولت/415 فولت/440 فولت/660 فولت

مقاس:

حسب الطلب

مصدر الطاقة:

ثلاث مراحل AC موتور

تحمل:

SKF / FAG / حسب الطلب الخاص بك

تصاعد:

قائم بذاته

تفاصيل التغليف:

حزمة لمجموعة محرقة مروحة السحب الصناعية

خدمة ما بعد البيع المقدمة:

خدمة الصيانة والإصلاح الميدانية

ضمان:

1 سنة

إبراز:

High Light

إبراز:

China-made heavy duty industrial fan,OEM ODM induced draft fan,centrifugal fan with warranty

OEM ODM induced draft fan

centrifugal fan with warranty

Trading Information

الحد الأدنى لكمية:

الأسعار:

$500-1000

تفاصيل التغليف:

1. تصدير حالة خشبية التعبئة 2. حزمة العارية مع البليت الصلب 3. حزمة التصدير الأخرى

وقت التسليم:

35 يوما (يتم التفاوض عليه)

شروط الدفع:

L/C ، T/T ، D/P.

القدرة على العرض:

300sets 30 يوم

وصف المنتج

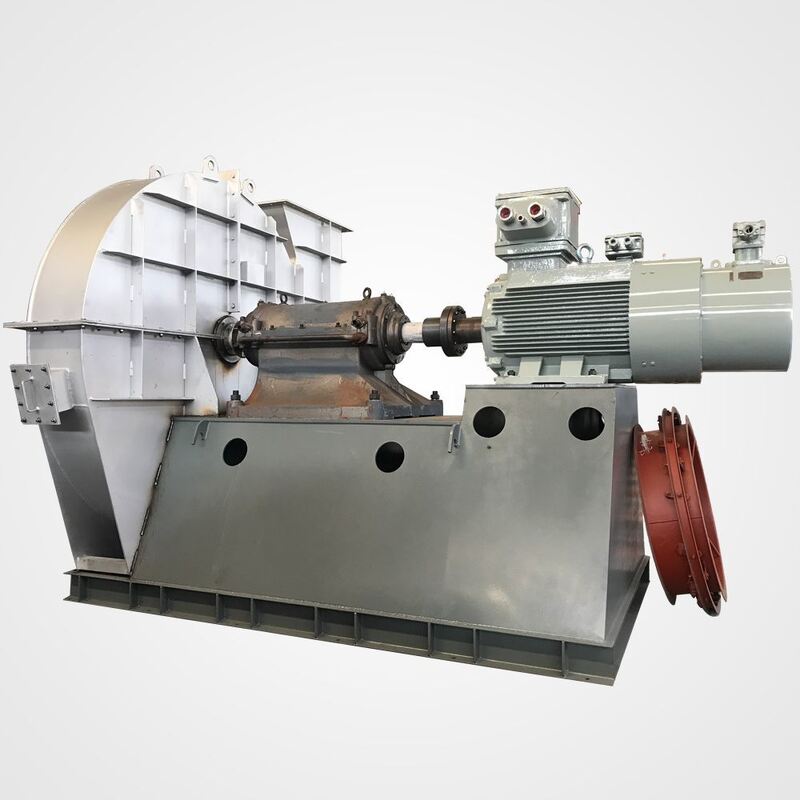

China-Made OEM/ODM Support Heavy Duty Industrial Induced Draft Fan

As a trusted China-based manufacturer, we specialize in providing heavy-duty industrial induced draft fans with full OEM/ODM support, tailored to meet the specific needs of global clients. Designed for demanding applications in power plants, metallurgy, and chemical processing, these fans ensure reliable performance in high-temperature and corrosive environments.

Constructed with robust materials and advanced engineering, our induced draft fans feature enhanced durability, efficient airflow handling, and energy-saving operation. The OEM/ODM capabilities allow for complete customization--from design and dimensions to performance specifications--ensuring seamless integration into your existing systems.

Built to withstand continuous heavy-duty use, these fans reduce operational costs and maintenance requirements while delivering consistent performance. Partner with us for scalable, high-quality induced draft solutions that combine precision engineering with flexible manufacturing support.

Product Features

This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.
The current collector and impeller front plate are processed by advanced spinning process and ensure precision.
V-belt driving and coupling driving type fan are equipped with integral bearing box, which has good lubrication, stable operation and long bearing life.
Equipped with tapered sleeve embedded pulley, easy to assemble and disassemble.
The current collector is equipped with a mounting flange to facilitate the use of the pipeline by the customer.

Product Parameters

Series no.	7-08.35 series	Feature selection
Performance	Impeller diameter	400-3500mm
	Rotation speed	≤1450rpm
	Pressure range	2144-13067Pa
	Flow range	2196-479182m³/h
Structure	Blade type	Backward, Straight, Aerofoil type
	Impeller support	SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type
	Lubrication method	Oil bath lubrication, grease lubrication, lubrication oil station (Can be specified)
Cooling method	Air cooling, Water cooling, Oil cooling (Can be specified)
Driven mode	Direct driven, Coupling driven, Belt driven (Can be specified)
Gas composition	Gas temperature	Normal \| Customer request \| Customer request \| ≥250ºC \| Customer request
Gas composition	gas characteristic	Clean gas \| Corrosive gas \| Particulate dust \| High temperature gas \| Flammable gas, explosive gas
System configuration	Motor brand	Chinese famous brand, ABB, Siemens, WEG etc (Can be specified)
Materials	Impeller	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| Wear-resistant layer or wear-resistant liner, ceramic patch \| High temperature high quality alloy steel \| FRP, Aluminum alloy (Can be specified)
	Air inlet cone	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| High quality carbon steel \| High quality carbon steel \| High quality carbon steel (Can be specified)
	Casing	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| High quality carbon steel \| High quality carbon steel \| High quality carbon steel (Can be specified)
	Air damper	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| High quality carbon steel \| High quality carbon steel \| High quality carbon steel (Can be specified)
	Main shaft	High strength carbon steel, Alloy structural steel (Can be specified)
Bearing	ZWZ, SKF, FAG, NSK (Can be specified)
Bearing housing	Cast iron
Foundation bolts	GB799-1988
Option parts	System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument.
